Aluminium Sliding & Patio Doors
Slim-sightline sliding and lift-and-slide aluminium doors for big glass that moves with control.
Estimates go out within 24 hours, Monday to Friday. We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time and price are worked out for your job at quote.
All product categories →
Fabricated in Haydock, St HelensTrade-only supply from our own workshop.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium sliding & patio doors can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. Where a premium route in the same family reaches a better figure, it is shown in the second column and quoted where the project calls for it. Either way this is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Limit | Standard route | Premium route, where specified |
|---|---|---|
| Frame sightline | 35mm | |
| Panels per run | 1 to 8 | |
| Leaf width | 350 to 2500mm | |
| Height | 400 to 3000mm | |
| Maximum leaf weight | 300kg | 420kg |
| Glazing unit | 24 to 36mm | 24 to 48mm |
| Glazing options | Double | |
| U-value from | 1.0 W/m²KTechnical data, Uw not more than 1.0 subject to typology, dimensions and glass | |
| Security | PAS24 (Apt) on reference test; multipoint |
Configurations available
- In-line sliding and lift&slide
- 2/3/4/6/8 sashes
- 1 rail (1 sash+1 fixed)
- 2/3/4 rails
- galandage 1/2/3/4 sashes
Tested performance
Two reference tests, one for the in-line slider and one for the lift and slide, with different classes. The lift and slide is tested much larger and trades wind class for size.
| Tested size | Air permeability | Watertightness | Wind resistance |
|---|---|---|---|
| 1800 x 2200mmIn-line slider, 2 sashes | Class 3 | Class 7A | Class C5 |
| 4000 x 2500mmLift and slide, 2 sashes | Class 4 | Class 7A | Class C2 |
Security: tested to PAS 24 on a 2400 x 2400mm reference window, 2 sashes.
Each row is a separate tested mock-up. A class is achieved at a size, so these are not a guarantee for every configuration. The classes that apply to your opening are confirmed at quote.
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and the test evidence belongs to the system it was tested on. Evidence for the configuration you specify is sent at quote.
In place

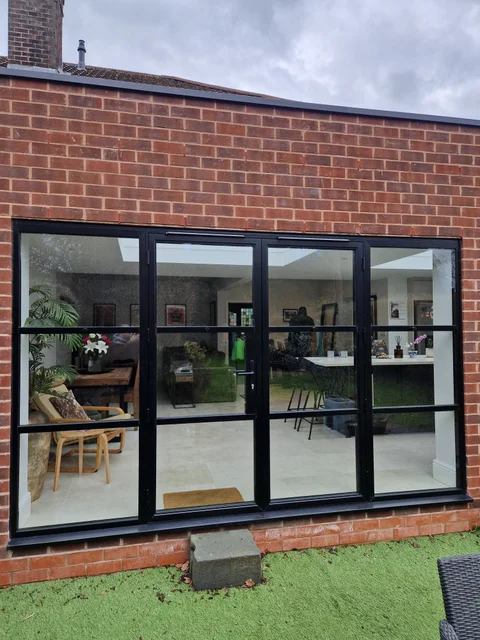

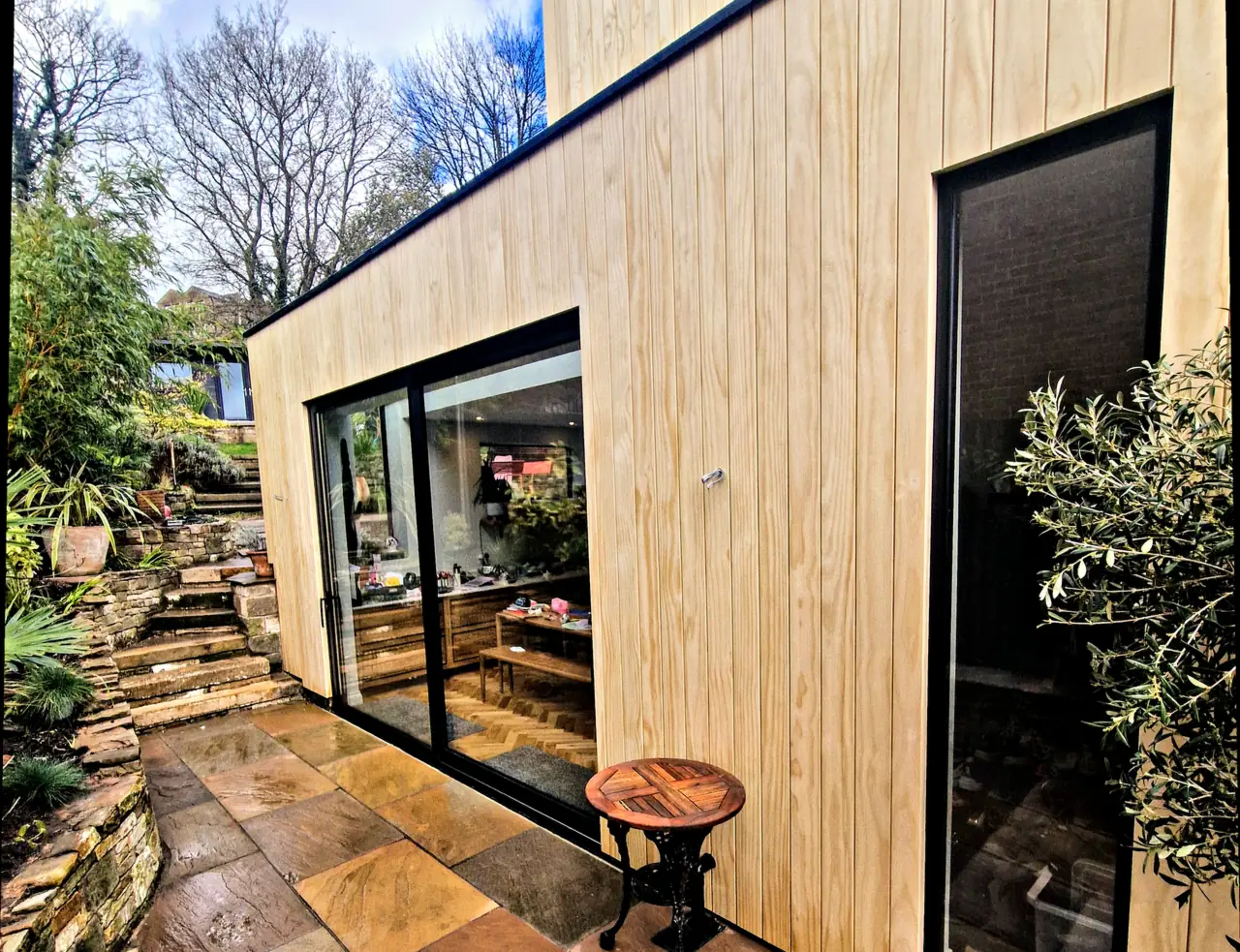

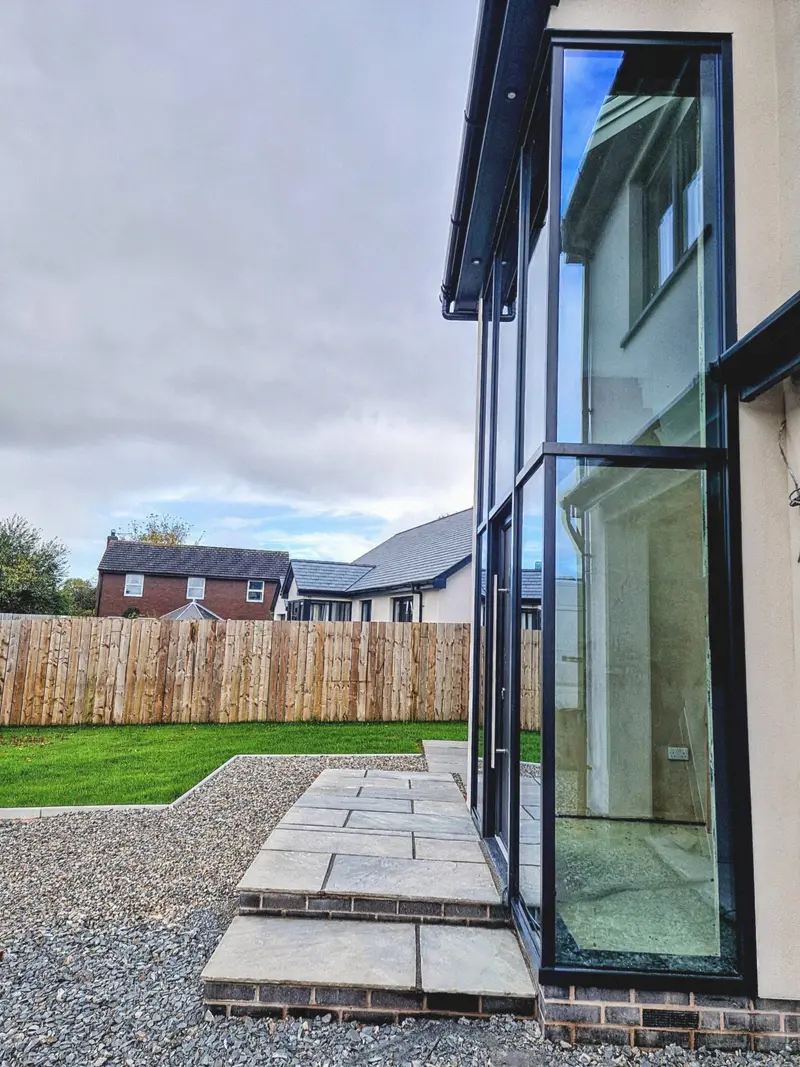

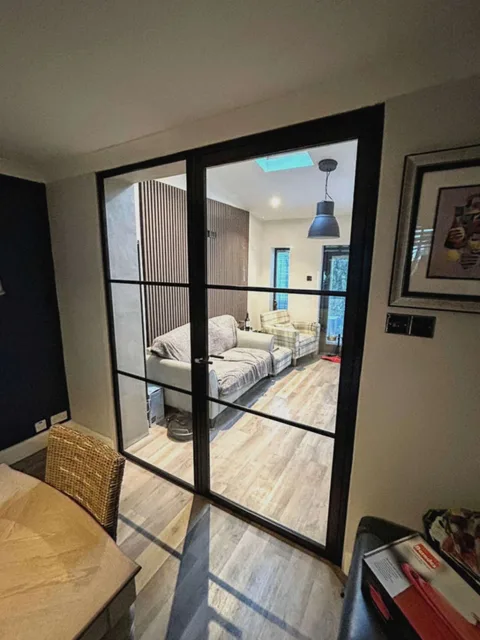

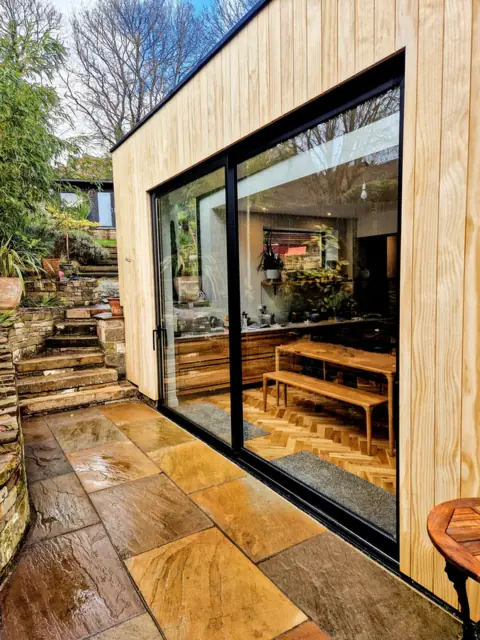

Aluminium Sliding & Patio Doors we have made
Design tool
See your aluminium sliding & patio doors to scale
Use the concept visualiser to explore approximate size, opening, glazing, finish and detailing before a quote request. It is a discussion aid, not a production drawing or evidence of technical suitability; current project review confirms the selected aluminium sliding & patio doors route.
Trade accounts only. Apply for one, or send drawings for an estimate instead.
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before it is passed to your installer, and your details are only passed on with your consent. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Sliding & Patio Doors
- Sightline
- 35 mm
- Glazing
- 24 to 36 mm
- Security
- PAS24 (Apt) on reference test; multipoint
- Status
- Capability, confirmed at quote
The figures for this product are in the fabrication record above, standard route and premium route side by side. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidenceFaster quote
What to send
Send these and the route can be confirmed without a back-and-forth.
- Opening size, track layout and whether the project needs inline, lift-and-slide, corner or pocket movement.
- Panel size, threshold preference and preferred sightline outcome.
- Glass weight, acoustic/privacy needs, finish and security target.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24 routes and energy efficiency and U-values.
Choosing between door types? See bifold vs sliding doors.
Common questions
What's the difference between lift-and-slide and inline sliding doors?
Inline doors run on rollers and move with a straight push. Lift-and-slide doors lift the sash off its seals on the handle turn, glide, then drop to compress the seals shut. Lift-and-slide suits heavier sashes, up to 2.2 m by 2.87 m and 420 kg where specified, and seals firmer. We confirm the action at quote.
What track layouts can you supply for sliding doors?
Two-track and three-track configurations in 2, 3, 4 and 6-sash layouts, sliding to one side or splitting from a central meeting point. A 35 mm slim interlock keeps central sightlines narrow, and pocket runs slide sashes into a wall cavity. Track count drives stacking and clear opening width. See our sliding door range, then confirm the layout and clear opening for your structural opening at quote.
What is the maximum sash size and weight for an aluminium sliding door?
Sashes run up to 2.2 m by 2.87 m at up to 420 kg where specified, with the achievable figure set by glass make-up and roller rating. Glazing spans 24 to 48 mm, including double, triple, laminated and integral-blind units. We confirm sash dimensions, weight and the rollers required when we prepare your quote.
How energy-efficient and weathertight are your sliding doors?
Whole-unit U-values run from 1.0 W/m²K where specified on lift-and-slide routes, with triple glazing up to 48 mm. Weather ratings reach air permeability Class 4, watertightness to Class 8A and wind resistance to Class C5. Acoustic reduction runs up to 45 dB. Confirm the whole-unit Uw at quote. See energy efficiency.
What thresholds, security and corner options are available for sliding doors?
Standard upstand thresholds for weather performance, or low thresholds and floor-recessed tracks for level, step-free access. Tested-security routes are available where required. Corner posts let two runs meet at an open corner, and a moving corner post slides clear so both runs open fully. See security or ask a vetted installer.
