Performance envelope
Public values are stated as achievable capability, then confirmed against the selected project specification at quote.
- U-values from 1.0 W/m²K where specified
- Up to 75 kg where specified
- Package route confirmed at quote
Package add-on for trade glazing schedules
Aluminium Roof Lanterns for trade packages
Aluminium Roof Lanterns are offered as a package add-on for wider trade glazing schedules, extensions and drawing-led estimates.
We confirm the appropriate product route per project at quote, based on the opening, drawings, performance target, glass and finish.
Lead time confirmed at quote, never a guess. Pricing per project, never a stock figure.
All product categories →
Council for Aluminium in Building memberProof shown in the footer.
Trade-firstInstallers, builders, architects, specifiers, joiners and commercial teams.
Quote-confirmed specificationProduct route, performance targets, glass and finish are confirmed per project.
Fabrication record
What aluminium roof lanterns can actually be built to
These are the limits the factory works to, taken from the fabrication data for the system we make this product in. Premium routes in the same family reach better thermal and acoustic figures than the ones below, and are quoted where the project calls for them. Either way this is the envelope, not a quotation: the achievable figures for your opening are confirmed against your drawings and a survey.
| Frame sightline | 90mm |
|---|---|
| Panels per run | 1 to 4 |
| Leaf width | 350 to 1200mm |
| Height | 400 to 2400mm |
| Maximum leaf weight | 120kg |
| Glazing unit | 24 to 44mm |
| Glazing options | Double |
| U-value from, this system | 1.1 W/m²K |
| Security | Fixed structural-glazed rooflight (not a security-rated opening). |
Configurations available
- Kerb-mounted structural-glazed rooflight
- 2-sided / 4-sided structural silicone glazed
- single-bay and multi-bay (rafter-bar) configurations
- suitable for slopes up to 15 degrees (recommended installed slope 3-5 degrees over the kerb).
Any security rating above is the tested performance of the system, held by the system manufacturer. VitrineAlu fabricates to the tested configuration and holds no certification of its own. Evidence for the configuration you specify is issued at quote.
In place

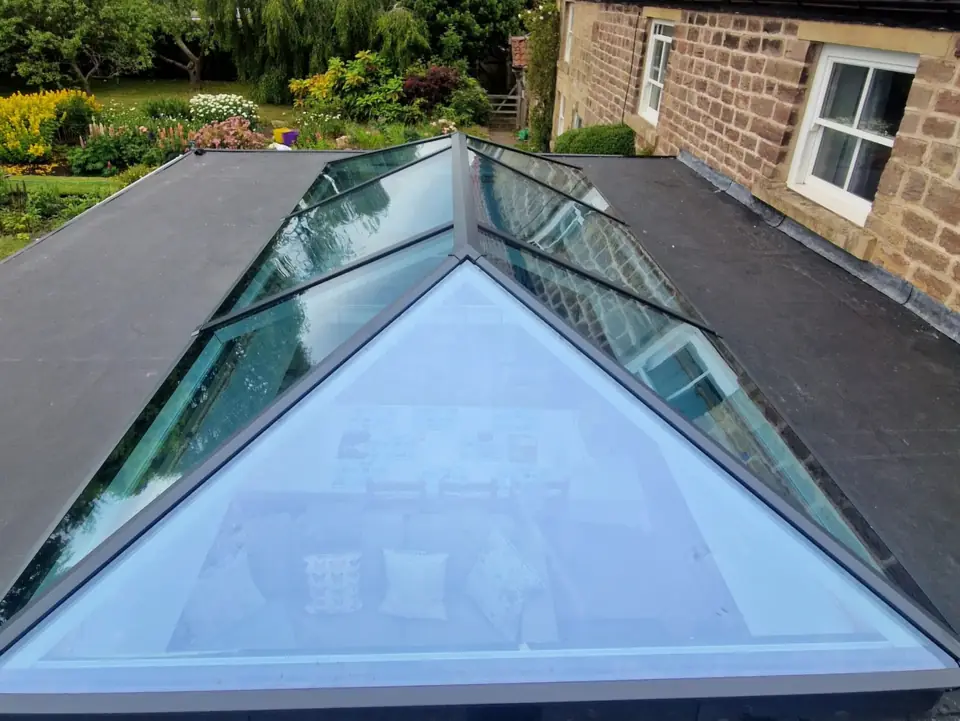

Aluminium Roof Lanterns we have made
For homes
Love these for your home?
VitrineAlu supplies through the trade. Send a referral request and we will review the product route before any installer handoff. Your installation contract and warranty remain with the installer you choose to proceed with.
Specification
Aluminium Roof Lanterns
- Sightline
- 90 mm
- Glazing
- 24–44 mm
- Leaves
- up to 4
- Security
- Fixed structural-glazed rooflight (not a security-rated opening).
- Status
- Capability, confirmed at quote
- Thermal
- U-values from 1.0 W/m²K where specified
- Size and Weight
- Up to 75 kg where specified
- Security
- Package route confirmed at quote
- Glazing
- Double or triple glazed
- Finishes
- Full RAL range
- Configurations
- Drawing-led sizing for extensions and open-plan spaces
Figures are achievable capability for the system, not a quotation. The route, glass and hardware that deliver them are confirmed per project.
Request current test evidenceFaster quote
What to send
Send these and the route can be confirmed without a back-and-forth.
- Structural opening size, roof build-up and pitch/kerb details.
- Glazing, colour and thermal target.
- Drawings or extension plans for checking before fabrication.
VitrineAlu capability
Benefits and options to discuss
Glazing and finish options
The visible choice stays product-led while the final aluminium product route is selected to suit the opening, glass and finish requirement.
- Double or triple glazed
- Full RAL range
- Full RAL palette
- Dual / two-tone colour
Configurations and quote support
Trade buyers, specifiers, builders and joiners can send the practical details needed for specification. Homeowner requests are referral-only, with consent before details are passed to suitable installers.
- Drawing-led sizing for extensions and open-plan spaces
- Structural opening size, roof build-up and pitch/kerb details.
- Glazing, colour and thermal target.
- Drawings or extension plans for checking before fabrication.
How we specify
The right product route is chosen per project
Exact specification (U-value, sizes, weights, security class, finish) is confirmed per project at quote, selected to suit the trade brief.
It means you lead with the outcome: light, security, clean sightlines, usable openings, buildable details and a specification that suits the drawings.
More on how routes are specified: security and PAS 24 routes and energy efficiency and U-values.
